TY-030

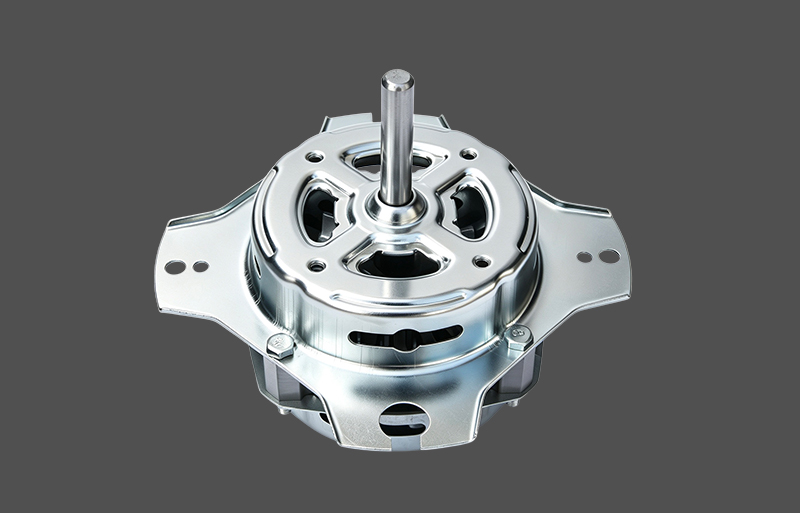

MOTOR FOR SPING MACHINE SERIES/TY-030.JPG,
MOTOR FOR SPING MACHINE SERIES/TY-030-1.JPG,
MOTOR FOR SPING MACHINE SERIES/TY-030-2.JPG

60W Spin Extractor Motor for Spin Machine

  • Model NO.: TY030
  • Speed: High Speed
  • Function: Spining
  • Number of Poles: 4
  • Certification: ISO9001, CCC
  • Capacitor: 3-14UF Can Be Choosen
  • Trademark: TNY
  • Specification: CCC, ISO9001
  • HS Code: 8501400000
  • Application: Machine Tool
  • Number of Stator: Single-Phase
  • Casing Protection: Protection Type
  • Starting Mode: Auto-induction Voltage-reduced Starting
  • Winding Wire: 100% Copper
  • Shaft Diameter: 10mm or 12mm
  • Transport Package: 4 PCS in Carton
  • Origin: Shengzhou, China

Details

         ITEM NAME SPIN MOTOR(TYPE)
YYG-30 YYG-45 YYG-60 YYG-70 XD-90
1 Rated Power Pn 30W 45W 60W 70W 90W
2 Rated Voltage U 220/240V 220/240V 220/240V 220/240V 220/240V
3 Namber of Poles p 4P
4 Rated Frequency f 50Hz 50Hz 50Hz 50Hz 50Hz
5 Capacitance C 3.5μF 3.5μF 3.5μF 3.5μF 3.5μF
6 Rated Current I 0.45A 0.65A 0.75A 0.85A 0.95A
7.1 Rated speed nN >1330r/min
7.2 Efficiency η 36% 37% 39% 41% 45%
7.3 Maximum Torque Tmax 0.45N.m 0.68N.m 0.75N.m 0.82N.m 1.13N.m
7.4 Locked Torque Tst 0.28N.n 0.42N.n 0.52N.n 0.65N.n 0.76N.n
7.5 locked Curent IST <1.4A       <1.5A
8 Insulation Grade B
