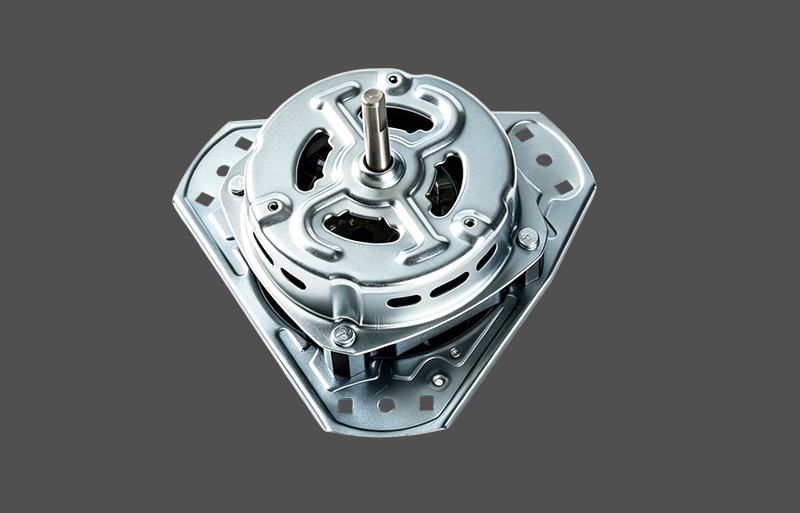

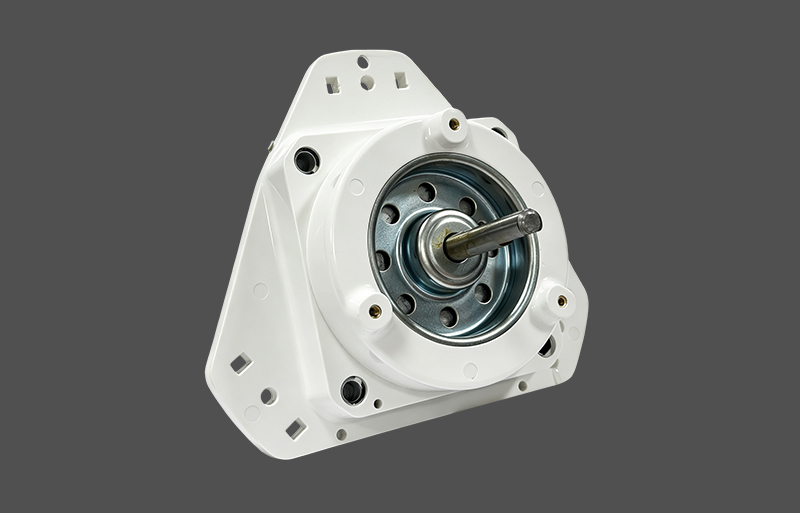

What are the characteristics of electromagnetic design of washing machine spin motor?
In the modern home appliance industry, the design and performance of the washing machine's dehydration motor directly affects the overall efficiency and user experience of the washing machine. Shengzhou Tianyi Electric Appliance Co., Ltd. is committed to improving the performance of dehydration motors through a series of technological innovations to ensure their competitiveness in the market.
Magnetic field distribution optimization design
The electromagnetic design of a washing machine spin motor is central to its performance. Shengzhou Tianyi Electric Appliance Co., Ltd.'s dehydration motor adopts advanced magnetic field distribution optimization design. Through precise calculation and analysis of the magnetic field inside the motor, the company has achieved efficient use of the magnetic field. This design not only significantly improves the working efficiency of the motor, but also effectively reduces iron loss and copper loss, thereby extending the service life of the motor. In addition, the optimized magnetic field distribution also reduces the noise and vibration of the motor, providing users with a quieter and more comfortable usage environment.
Innovative design of stator and rotor structure
The stator and rotor are the key components of the washing machine dehydration motor, and their structural design directly affects the performance and reliability of the motor. Shengzhou Tianyi Electric Appliance Co., Ltd.'s dehydration motor adopts cutting-edge stator and rotor structure design. By optimizing parameters such as stator slot type, winding arrangement and rotor pole layout, the company has significantly improved the torque density and efficiency of the motor. At the same time, the use of high-performance permanent magnet materials, such as NdFeB, further enhances the magnetic energy product and magnetic stability of the motor. These innovative designs allow the dehydration motor to produce greater torque during operation while maintaining a low profile in terms of energy consumption and noise levels.
Breakthrough in electromagnetic control technology
Electromagnetic control technology is the cornerstone for the efficient and stable operation of the washing machine's dehydration motor. Shengzhou Tianyi Electric Appliance Co., Ltd. has conducted a lot of innovative research in this field, using advanced vector control algorithms and field-oriented control technology. These technologies achieve precise control of motor current and magnetic field, which not only improves the dynamic response speed and steady-state accuracy of the motor, but also effectively reduces harmonic losses and electromagnetic interference. In addition, the intelligent control system developed by the company can automatically adjust the motor speed and torque according to the load and operating status of the washing machine in real time, thereby achieving more energy-saving and environmentally friendly operation results.
Efficient heat dissipation design
During the operation of the washing machine's dehydration motor, the generation of heat is inevitable. If the heat dissipation design is insufficient, the motor temperature will rise, which will affect its performance and service life. Shengzhou Tianyi Electric Appliance Co., Ltd. has conducted in-depth research and development in heat dissipation design. By adopting efficient heat dissipation structures and materials, such as large-area heat sinks and high-thermal conductivity heat dissipation paint, the company has significantly improved the heat dissipation performance of the motor. At the same time, the intelligent heat dissipation control system automatically adjusts the speed and wind direction of the cooling fan according to the temperature changes and operating status of the motor to ensure accurate and efficient heat dissipation.
In the design and production process of washing machine dehydration motor, the selection of materials is crucial. The motor needs to withstand significant loads and centrifugal forces caused by high-speed rotation during operation, so the mechanical properties of the material are the primary consideration. High-quality materials not only ensure the stability and reliability of the motor, but also extend its service life. We usually choose materials with high strength, high toughness and high wear resistance, such as high-quality silicon steel sheets, high-strength alloy steel and stainless steel. These materials have excellent fatigue resistance, impact resistance and wear resistance, and can maintain good performance under long-term and high-load operating conditions.
In addition to mechanical properties, electromagnetic properties are also an important factor affecting the efficiency and energy consumption of the washing machine's dehydration motor. The electromagnetic properties of a motor, such as conductivity, magnetic permeability and resistivity, are directly related to its working efficiency. Therefore, in the selection of materials, we pay special attention to the optimization of these electromagnetic properties. For example, using low-resistivity copper as winding material not only improves the conductivity efficiency of the motor, but also effectively reduces energy consumption. In addition, the selection of high-performance permanent magnet materials, such as NdFeB, can significantly improve the magnetic energy product and magnetic stability of the motor, thereby enhancing the torque density and overall efficiency of the motor.
Thermal stability and corrosion resistance are also key factors in the selection of materials for washing machine dehydration motors. The motor generates a lot of heat when working. If the thermal stability of the materials used is insufficient, the motor temperature may be too high, thus affecting its performance and life. Therefore, it is particularly important to give priority to materials with good thermal stability and high thermal conductivity, such as heat sink materials with high thermal conductivity and high temperature resistant insulation materials. In addition, considering that the washing machine dehydration motor is used in a humid and corrosive environment, we pay special attention to the corrosion resistance of the material, and often use stainless steel and anti-corrosion coatings to enhance the corrosion resistance of the motor and ensure its reliable operation in various environments. .
