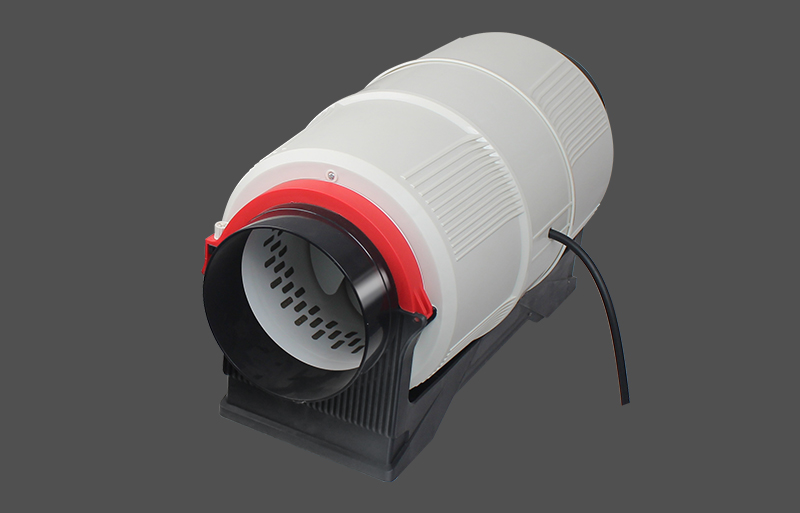

ZB-Series Diagonal Flow Low-Noise Silent Inline Fan

ZB-Series Diagonal Flow Low-Noise Silent Inline Fan

This silent fan is crafted for indoor environments with strict acoustic requirements, such as luxury hotel rooms, high-end meeting rooms, precision laboratories, libraries, and medical rehabilitation centers. Its primary goal is to provide sufficient fresh air while reducing operational sound to ambient background levels, ensuring a quiet environment.

Details

Key Features:
Acoustically Optimized Design: Internal flow paths are meticulously calculated using aerodynamics to minimize turbulence noise caused by air friction. While delivering high air volumes, certain models maintain noise levels below 50dB for a superior silent experience.
Dual-Speed Switching Function: Equipped with both single-speed and dual-speed operating modes, with air volumes ranging from 290m³/h to 1200m³/h. Users can flexibly adjust ventilation intensity based on indoor CO2 concentrations or occupancy levels.
Precision Motor Engineering: Utilizes high-life bearing motors with speeds reaching 2100r/min to 2750r/min, achieving efficient pressure output at low power consumption, in line with modern green building energy standards.
Core Advantages: The ZB-Series successfully solves the industry challenge of balancing high air volume with low noise. Its compact circular interface design allows for seamless connection with standard flexible or rigid ducts. It is easy to install and requires minimal maintenance, providing a professional solution for enhancing indoor air quality and freshness.

Parameter ZB-100 Single-speed ZB-100 Two-speed ZB-125 Single-speed ZB-125 Two-speed ZB-150 Single-speed ZB-150 Two-speed ZB-200 Single-speed ZB-200 Two-speed
Voltage/Frequency 220V~50Hz 220V~50Hz 220V~50Hz 220V~50Hz 220V~50Hz 220V~50Hz 220V~50Hz 220V~50Hz
Rated Power 40W 40W 40W 30W 70W 60W 145W 130W
Air Volume 290m³/h 330m³/h 290m³/h 280m³/h 620m³/h 480m³/h 1120m³/h 900m³/h
Rated RPM 2750r/min 2750r/min 2750r/min 2450r/min 2450r/min 2000r/min 2100r/min 1950r/min
Wind Pressure 125Pa 150Pa 125Pa 125Pa 280Pa 250Pa 350Pa 280Pa
Noise Level ≤50dB ≤50dB ≤50dB ≤50dB ≤60dB ≤60dB ≤65dB ≤65dB
Nozzle Diameter 100mm 100mm 125mm 125mm 150mm 150mm 200mm 200mm
