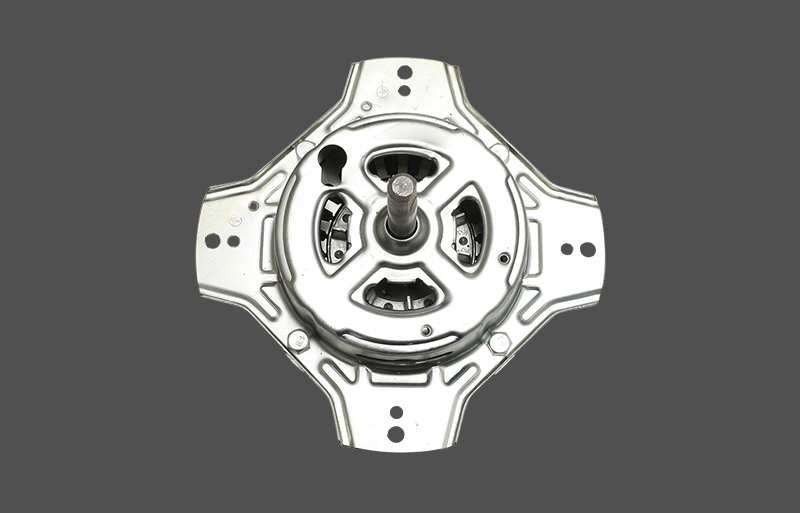

MOTOR FOR SPING MACHINE SERIES/TY-027.JPG,
MOTOR FOR SPING MACHINE SERIES/TY-027-1.JPG,
MOTOR FOR SPING MACHINE SERIES/TY-027-2.JPG
| ITEM NAME | SPIN MOTOR(TYPE) | ||||||
| YYG-30 | YYG-45 | YYG-60 | YYG-70 | XD-90 | |||
| 1 | Rated Power | Pn | 30W | 45W | 60W | 70W | 90W |
| 2 | Rated Voltage | U | 220/240V | 220/240V | 220/240V | 220/240V | 220/240V |
| 3 | Namber of Poles | p | 4P | ||||
| 4 | Rated Frequency | f | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| 5 | Capacitance | C | 3.5μF | 3.5μF | 3.5μF | 3.5μF | 3.5μF |
| 6 | Rated Current | I | 0.45A | 0.65A | 0.75A | 0.85A | 0.95A |
| 7.1 | Rated speed | nN | ＞1330r/min | ||||
| 7.2 | Efficiency | η | 36% | 37% | 39% | 41% | 45% |
| 7.3 | Maximum Torque | Tmax | 0.45N.m | 0.68N.m | 0.75N.m | 0.82N.m | 1.13N.m |
| 7.4 | Locked Torque | Tst | 0.28N.n | 0.42N.n | 0.52N.n | 0.65N.n | 0.76N.n |
| 7.5 | locked Curent | IST | ＜1.4A | ＜1.5A | |||
| 8 | Insulation Grade | B | |||||
