TY-017

MOTOR FOR WASHING MACHINE SERIES/TY-017.JPG,
MOTOR FOR WASHING MACHINE SERIES/TY-017-1.JPG,
MOTOR FOR WASHING MACHINE SERIES/TY-017-2.JPG

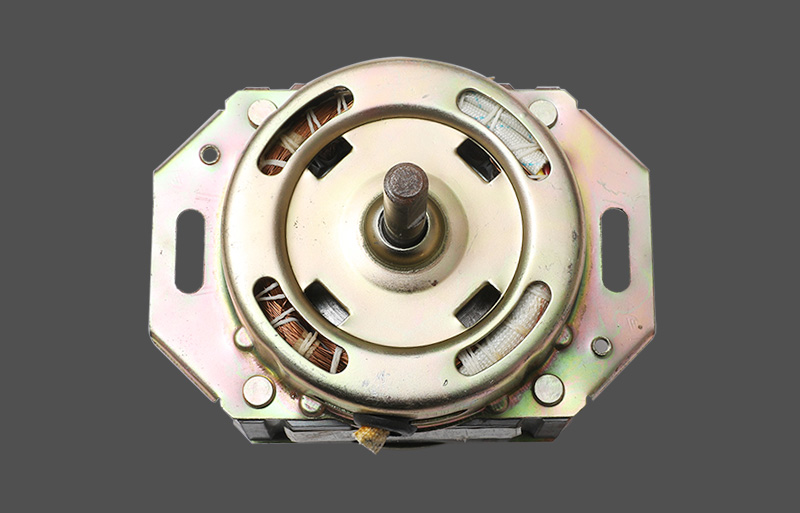

Rivet Fix Washing Motor with Color Box

Model NO.: TY017
Speed: High Speed
Function: Spin Motr
Number of Poles: 4
Certification: ISO9001, CCC
Shaft Diameter: 10mm or 12mm
Trademark: TNY
Specification: CCC, ISO9001
HS Code: 8501400000
Application: Machine Tool
Number of Stator: Single-Phase
Casing Protection: Protection Type
Starting Mode: Auto-induction Voltage-reduced Starting
Winding Wire: 100% Copper
Capacitor: 3-14UF Can Be Choosen
Transport Package: 4 PCS in Carton
Origin: Shengzhou, China

Details

         ITEM NAME                             WASH MOTOR(TYPE)
XD-80 XD-100 XD-120 XD-135 XD-150 XD-160 XD-180 XD-200
1 Rated Power PN 80W 100W 120W 135W 150W 160W 180W 200W
2 Rated Voltage U 220/240V 220/240V 220/240V 220/240V 220/240V 220/240V 220/240V 220/240V
3 Namber of Poles p 4P
4 Rated Frequency f 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
5 Capacitance C 7μF 8μF 10μF 11μF 12μF 12μF 13μF 14μF
6 Rated Current I 0.8/0.85A 0.9/1.8A 1.15/1.2A 1.3/1.35A 1.4/1.5A 1.5/1.6A 1.6/1.7A 1.7/1.8A
7.1 Rated speed nN >1340r/min(>1600r/min)
7.2 Efficiency η 46% 47% 48% 49% 50% 52% 54% 56%
7.3 Maximum Torque Tmax 1.02N.m 1.3N.m 1.52N.m 1.6N.m 1.7N.m 1.82N.m 2.05N.m 2.26N.m
7.4 Locked Torque Tst 0.68N.n 0.75N.n 0.806N.n 0.88N.n 0.95N.n 1.1N.n 1.3N.n 1.4N.n
7.5 locked Curent Ist <2.5A <2.8A <3.0A
8 Insulation Grade B
