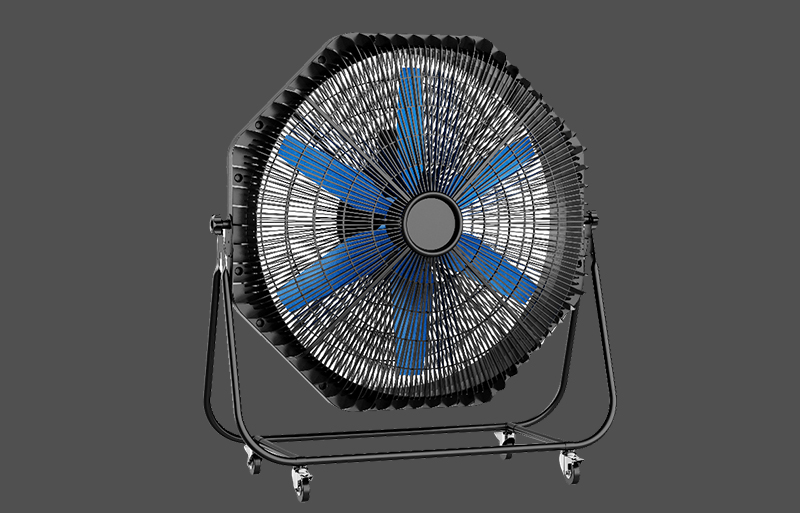

YS-Series Industrial Mobile High-Volume Circulation Fan

YS-Series Industrial Mobile High-Volume Circulation Fan

This circulation fan series is specifically engineered for large open or semi-open industrial spaces. It is widely applied in automated production workshops, warehousing and logistics centers, large athletic facilities, agricultural breeding bases, and outdoor event zones. Its core design objective is to eliminate thermal dead zones through large-area air disturbance, achieving a balanced temperature across the entire environment.

Details

Key Features:
Scientific Airflow Structure: Featuring large-diameter (650mm-1250mm) high-performance impellers and optimized guide grilles, the air delivery distance can extend up to 60 meters. This long-range, wide-span wind coverage effectively dissipates heat accumulated on floors and equipment.
High-Standard Power System: Equipped with energy-efficient AE/EC motors, offering 3-speed, 7-speed, or stepless regulation. The motors run smoothly with noise levels between 58dB-65dB, balancing powerful performance with acoustic comfort for the workspace.
Heavy-Duty Protection and Easy Mobility: The housing is made of high-performance PP material, providing excellent resistance to physical impact and corrosion. The base features heavy-duty universal wheels with locking mechanisms, allowing a single person to easily deploy and secure the unit on complex industrial floors.
Core Advantages: The YS-Series is the preferred choice for improving working conditions in massive industrial spaces due to its outstanding airflow and flexible mobility. It significantly enhances indoor air circulation and lowers the perceived temperature for employees. Compared to traditional fixed air conditioning, its low power consumption and maintenance costs help enterprises achieve both energy-saving and operational efficiency.

MODEL YS-65 YS-75 YS-90 YS-125
Voltage 180-240V~/50/60Hz 180-240V~/50/60Hz 180-240V~/50/60Hz 180-240V~/50/60Hz
Power 290W 450W 500W 750W
Air Volume 14000m³/h 18000m³/h 24000m³/h 36000m³/h
Blade Diameter 650mm 750mm 900mm 1250mm
Material PP PP PP PP
Motor Specs AE/EC AE/EC EC EC
RPM 1050r/min 900r/min 650r/min 500r/min
ADD 30m 35m 45m 60m
Wind Speed 3 speeds/7 speeds/stepless speed regulation 3 speeds/7 speeds/stepless speed regulation 7 speeds/stepless speed regulation 7 speeds/stepless speed regulation
Noise Level 58dB 62dB 65dB 65dB
Applicable Area 100㎡ 150㎡ 250㎡ 350㎡
