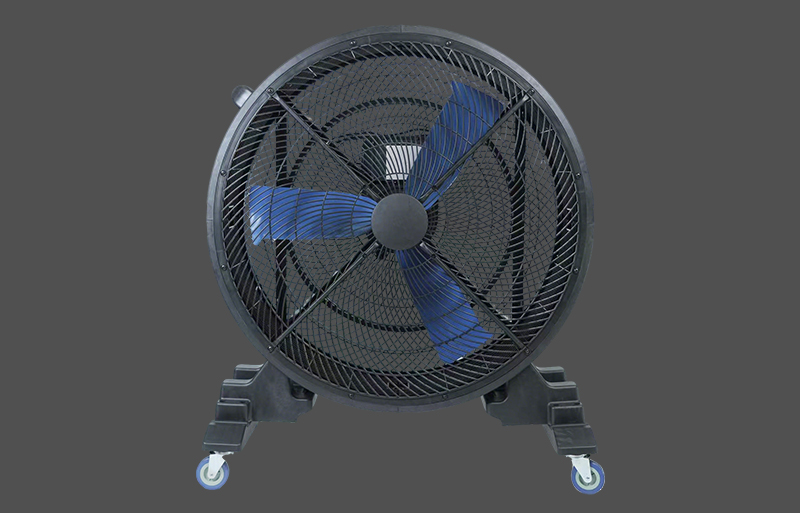

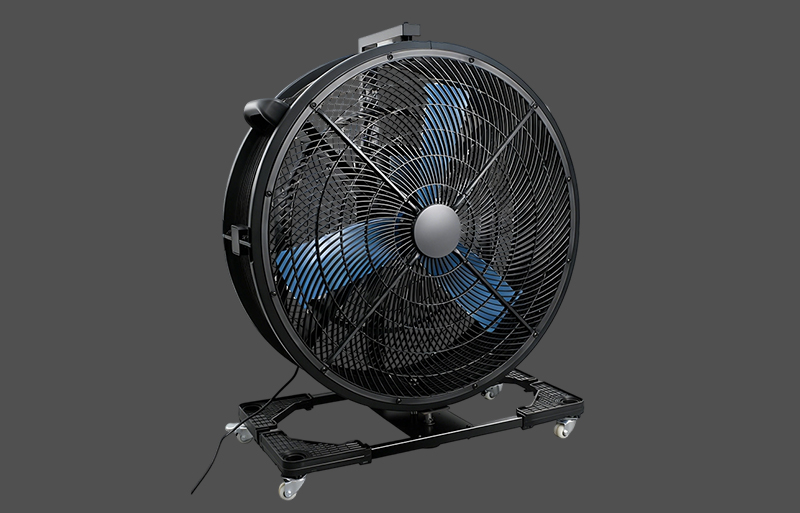

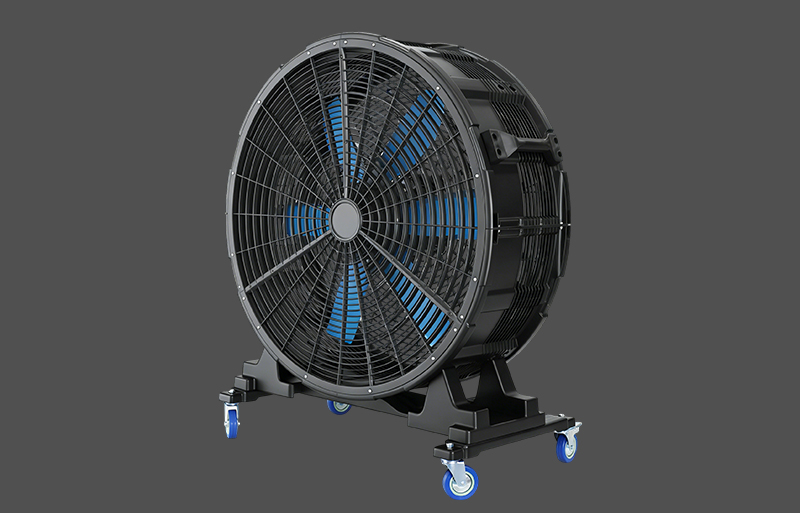

BF-Series Heavy-Duty Industrial Mobile Large Scale Fan

BF-Series Heavy-Duty Industrial Mobile Large Scale Fan

This is a heavy-duty unit designed for extreme ventilation demands, suitable for large mechanical assembly workshops, shipbuilding docks, logistics sorting centers, stadiums, and various high-temperature workplaces. With a coverage area per unit of 100-350 square meters, it is a professional tool for addressing air stagnation and heat issues in massive spaces.

Details

Key Features:
Extra-Large Diameter Impeller: The impeller diameter reaches up to 1250mm. Combined with a high-performance motor, it outputs a powerful airflow of up to 36000m³/h, extending air delivery to 60 meters to achieve full-field air convection.
All-Weather Durable Materials: The housing is made of high-performance PP (polypropylene) material, offering superior physical impact resistance and chemical corrosion resistance for long-term use on complex industrial floors.
Flexible Speed Control System: Offers 3-speed, 7-speed, and stepless regulation options. It features stable startup and precisely controllable speeds, allowing for dynamic adjustment of wind intensity based on the actual thermal load of the production site.
Core Advantages: With its vast coverage area and low operating costs, this fan series serves as an effective supplement or alternative to traditional high-energy air conditioning systems. High-strength universal wheels at the base provide excellent deployment flexibility, allowing for rapid adjustment to workstation changes and significantly improving the working environment and production efficiency for frontline staff.

MODEL BF-65 BF-75 BF-90 BF-125
Voltage 180-240V~/50/60Hz 180-240V~/50/60Hz 180-240V~/50/60Hz 180-240V~/50/60Hz
Power 290W 450W 500W 750W
Air Volume 14000m³/h 18000m³/h 24000m³/h 36000m³/h
Blade Diameter 650mm 750mm 900mm 1250mm
Material PP PP PP PP
Motor Specs AE/EC AE/EC EC EC
RPM 1050r/min 900r/min 650r/min 500r/min
ADD 30m 35m 45m 60m
Wind Speed 3 speeds/7 speeds/stepless speed regulation 3 speeds/7 speeds/stepless speed regulation 7 speeds/stepless speed regulation 7 speeds/stepless speed regulation
Noise Level 58dB 62dB 65dB 65dB
Applicable Area 100㎡ 150㎡ 250㎡ 350㎡
