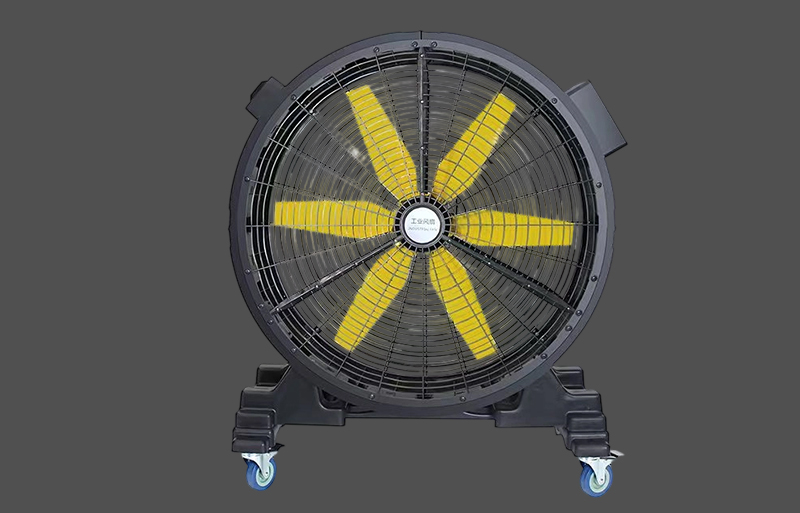

ZP-Series Industrial Cooling Large Scale Fan

ZP-Series Industrial Cooling Large Scale Fan

This is a multi-functional cooling device that integrates powerful air delivery with fine atomization. it is particularly suitable for high-temperature foundries, outdoor gatherings, large-scale livestock farms, and industrial sites requiring dust suppression.

Details

Key Features:
Efficient Atomization Cooling: Equipped with advanced centrifugal atomization components, it produces micron-sized mist that absorbs heat through evaporation, rapidly lowering the surrounding temperature by 5-10 degrees Celsius.
Long-Distance Reach: The wind-driven mist can reach up to 30 meters, covering an area of approximately 100 square meters. Besides cooling, it serves significant functions in dust control and increasing air humidity.
Integrated All-in-One Design: Features a built-in large-capacity water tank and circulation system, eliminating the need for frequent external water connections. The rugged PP body and mobile base ensure durability in harsh outdoor environments.
Core Advantages: The Zp-Series addresses the challenge of cooling open spaces where traditional air conditioning is impractical. It provides significant perceived cooling at a very low operating cost, protecting worker health and reducing heat stress while effectively improving the air quality of the workspace.

MODEL ZP-65 ZP-75 ZP-90 ZP-125
Voltage 180-240V~/50/60Hz 180-240V~/50/60Hz 180-240V~/50/60Hz 180-240V~/50/60Hz
Power 290W 450W 500W 750W
Air Volume 14000m³/h 18000m³/h 24000m³/h 36000m³/h
Blade Diameter 650mm 750mm 900mm 1250mm
Material PP PP PP PP
Motor Specs AE/EC AE/EC EC EC
RPM 1050r/min 900r/min 650r/min 500r/min
ADD 30m 35m 45m 60m
Wind Speed 3 speeds/7 speeds/stepless speed regulation 3 speeds/7 speeds/stepless speed regulation 7 speeds/stepless speed regulation 7 speeds/stepless speed regulation
Noise Level 58dB 62dB 65dB 65dB
Applicable Area 100㎡ 150㎡ 250㎡ 350㎡
