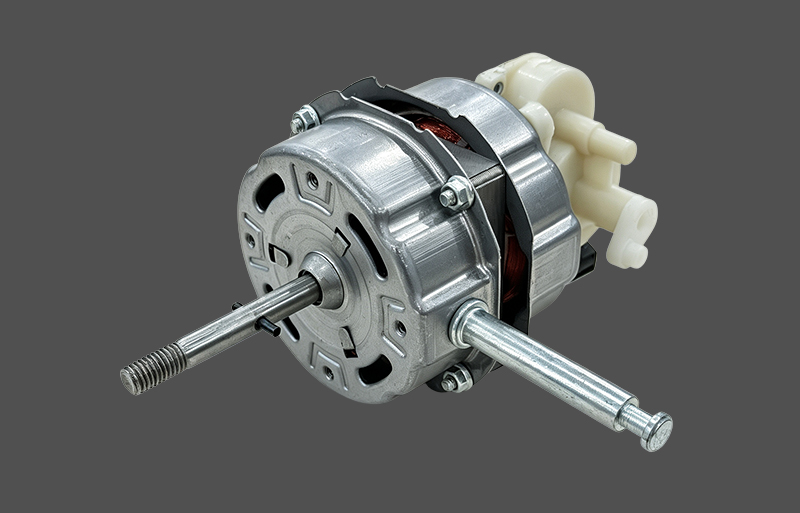

TY-086 Exposed-Copper Dual-Shaft Pedestal Fan Motor

TY-086 Exposed-Copper Dual-Shaft Pedestal Fan Motor

1. Enamelled copper windings with open frame for strong cooling
2. Silicon steel laminations reduce core loss and heat
3. Precision-ground long shaft keeps blade hubs seated firmly
4. Open construction allows easy inspection and servicing
5. Single or multi-speed, 110V or 220V, shaft length tailored

Details

The ty-086 is a pedestal fan motor built for buyers who value visible, hands-on build quality. The windings are wound from enamelled copper wire and left exposed around a metal frame, with a long shaft on one side for the fan blade and a second shaft end opposite it for the oscillating linkage. This open design is the traditional approach for high-output household fans: air from the blade passes across the winding and carries heat away, so the motor can deliver strong torque at medium speed without overheating. The ty-086 is intended for 16-inch and 18-inch stand fans and industrial-style circulating fans, where the airflow is expected to be powerful and the fan may run for hours. A stack of silicon steel laminations forms the stator, helping to reduce core loss and keeping the motor comfortable to the touch after prolonged use. The long shaft is ground to a precise diameter so the blade hub seats firmly and does not slip, and the frame is drilled for standard mounting. Maintenance is simple, because the open construction allows technicians to inspect the windings, add lubricant to the bearings and replace the capacitor without dismantling a sealed housing. We can supply the ty-086 in single-speed or multi-speed versions, in 110V or 220V, and with shaft lengths tailored to your fan head. Compared with the black plastic-housing oscillating motors in our range, the ty-086 gives better cooling and higher power density, though it asks for a fan head with sufficient guard protection. Fan makers that serve markets with hot climates, or that want to market a heavy-duty feel, will find it a trustworthy base for their stand fan lines.
